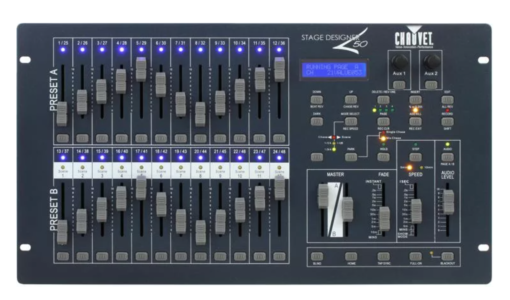

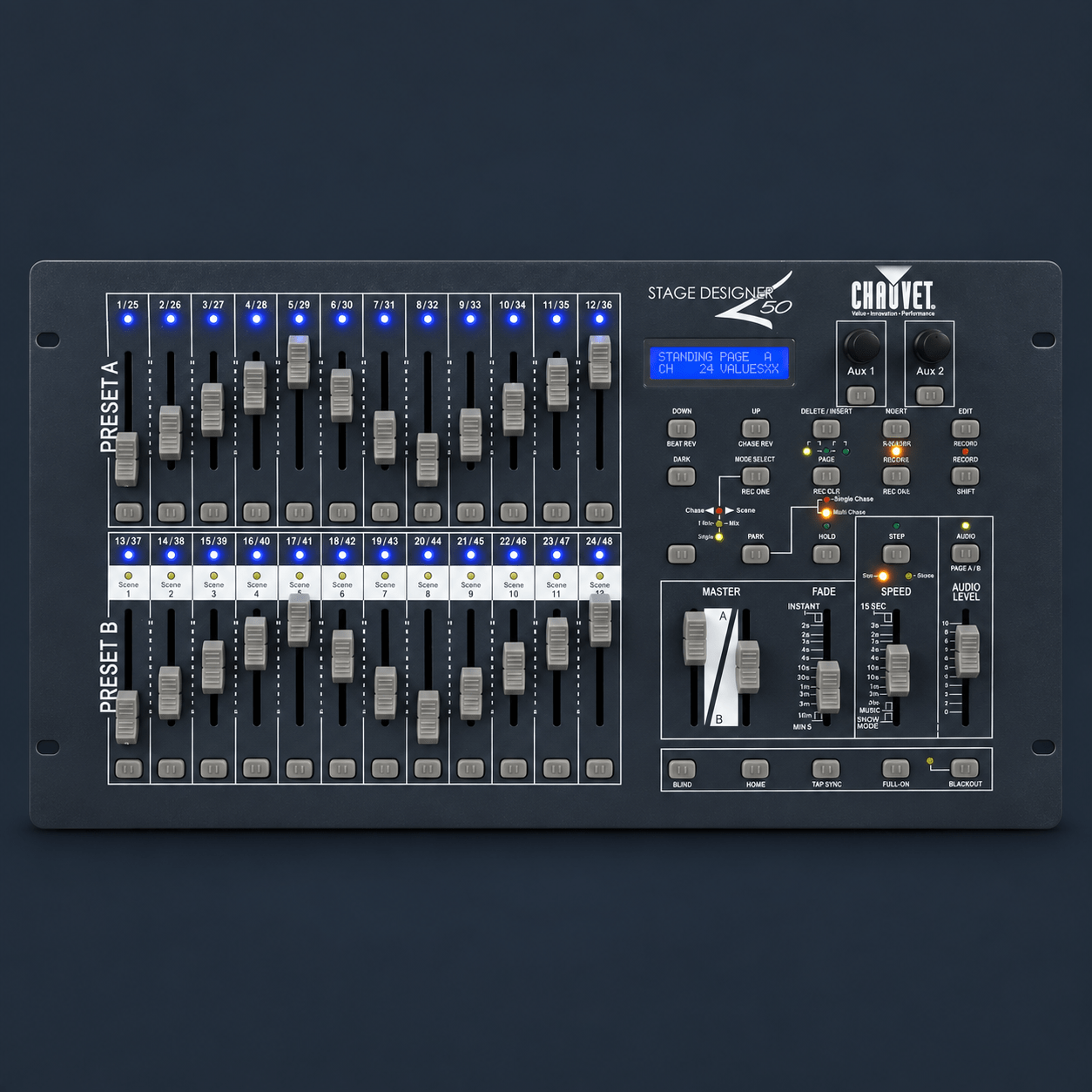

With the size of a 24-channel dimming console, the Chauvet Stage Designer 50 gives you the functionality of a 48-channel board. The Stage Designer 50 offers up to eight pages with 12 scenes each, and 96,000 programmable steps. This is one powerful dimming unit! This console even lets you re-assign channels as required and allows for MIDI input. If you want a powerful dimming console in a small package, Sweetwater’s got your board – the Chauvet Stage Designer 50.
Chauvet Stage Designer 50 48-channel DMX-512 Dimming Console Features at a Glance:
- 48-channel DMX-512 dimming console
- Eight pages with 12 scenes each yields 48 total playback faders (simultaneous playback)
- 96,000 programmable steps
- Two programmable aux buttons
- Adjustable chase and fade times
- Re-assignable channels
- 3-pin and 5-pin DMX connections
- Built-in cross fader, dark and kill buttons
- MIDI in, out and thru (with file dump)
- Direct audio input
- Sequential linking or simultaneous playback of chases
- Override chases on the fly
- Beat-activation, tap sync, auto run, MIDI in/out
- 6-space (6U) rack mount; polarity selector
Get tons of power in a small package with the Chauvet Stage Designer 50!
